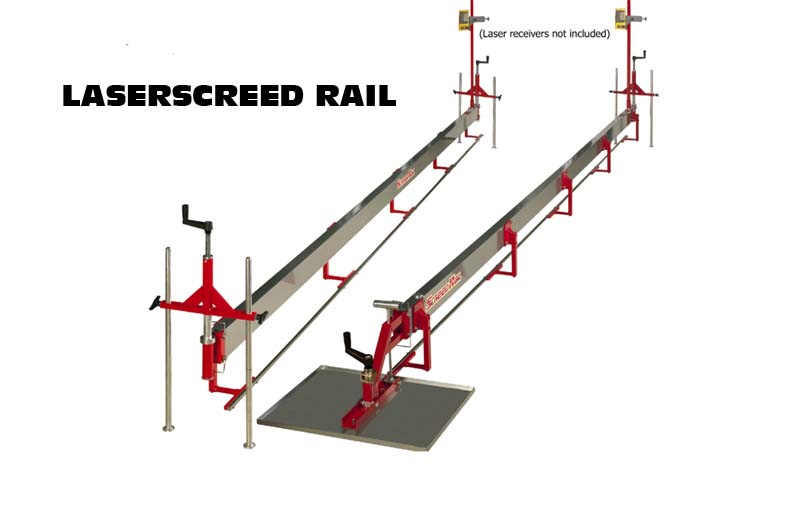

Screed Rail Laser Strike Off Guide
The screed rail laser strike off guide rail is designed to achieve level concrete floors when carrying out wet pad concrete pours. Available in single or dual rail.
This light to carry rail reference system comes in three meter sections and is easy to move around the work area. The rail can be quickly adjusted via the elevation control handle to match laser staff reciever readings. This reusable system allows you to make laser reciever accurate refeference to grade when flood pouring your concrete slab.
This a perfect system for using with our Multivibe vibratory screeds (also known as Magic Screeds) for levelling concrete. Please enquire about Multivibes if you require to hire or purchase, we have petrol and battery powered models available.
Portable, mobile formwork for power screeds.
Adjustable, light-weight, rapidly installed and removed, temporary form for accurately gauging the strike-off of concrete slabs, pavements, and overlays (down to 1½” thickness). Provides rigid, at-grade reference for all types of manual straightedges and light “vibra-screeds” (e.g. Vibra-Strike® units). Supported at ends either on previously struck concrete and sub-grade by float and manual screw jack, or on sub-grade alone by two manual screw jacks. Optional sand / poly pads can be installed on jacklegs. Can be configured to produce constant thickness slabs and overlays (i.e. to follow the sub-grade) by fixing the jack elevation(s), or to produce planar slabs and overlays by readjusting the jack(s) to laser plane as work proceeds.
Specifications
WEIGHT: 20.8kg
LENGTH: 18’-6” (overall), 16’-0” (rail)
MATERIAL: Powder coated aluminium
3m long by 51mm wide. Custom sizes can be made available on request.
