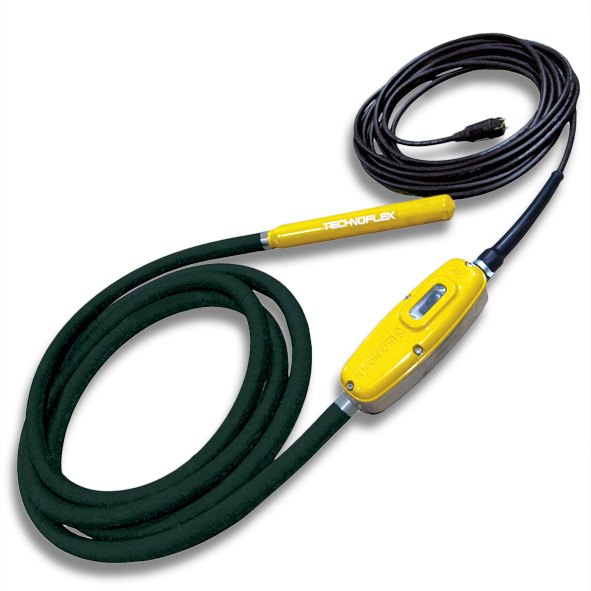

Technoflex Gold High Frequency Vibrator

High Frequency Pokers

Our new range of 110v electric powered high frequency pokers represent a significant technological advance over conventional high- frequency vibrators.

Technoflex high frequency concrete pokers have the electronic converter integrated within the transmission, eliminating the need for stand alone converters commonly used, offering greater versatility for many applications.

The Excel is the top of the range model which features a 7m flex and can run head sizes up to 70mm/2¾".

The motor is in the head itself which creates a very powerful but smooth high frequency vibration which prevents concrete splatter whilst ensuring air pockets are removed. The Motor in the head also means a very low hand arm vibration figure to meet the latest in HSE requirements and helping the operator in the machines use and control

Its electronic components are well- protected against power surges and vibration, offering greater safety, reliability and handling.

The high frequency poker provides better consolidation over traditional pendulum pokers

Specifications

EDF-38 LT:
∅ 38 mm | NEEDLE LENGTH 360 mm | NEEDLE WEIGHT 3,5 Kg | TOTAL WEIGHT 20 Kg | VIBRATIONS 13,500 rpm | CENTRIFUGAL FORCE 1,500N | NOMINAL CURRENT 2.5 A

EDF-50 LT:
∅ 50 mm | NEEDLE LENGTH 398 mm | NEEDLE WEIGHT 5 Kg | TOTAL WEIGHT 21.5 Kg | VIBRATIONS 12,000 rpm | CENTRIFUGAL FORCE 3,300N | NOMINAL CURRENT 4 A

EDF-60 LT:
∅ 60 mm | NEEDLE LENGTH 405 mm | NEEDLE WEIGHT 6.5 Kg | TOTAL WEIGHT 23 Kg | VIBRATIONS 12,000 rpm | CENTRIFUGAL FORCE 5,600N | RATED CURRENT 6 A

EDF-70 LT:
∅ 70 mm | NEEDLE LENGTH 398 mm | NEEDLE WEIGHT 7.5 Kg | TOTAL WEIGHT 24 Kg | VIBRATIONS 12,000 rpm | CENTRIFUGAL FORCE 7,500N | RATED CURRENT 8 A
