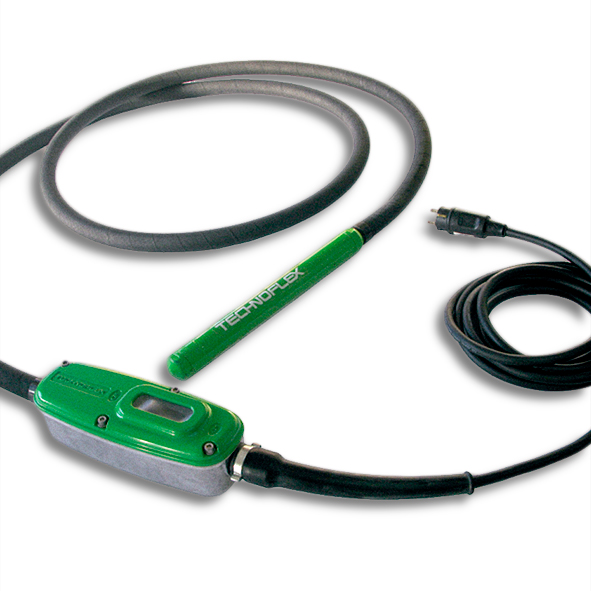

The 'Silva' is the latest in the range from technoflex. It has been designed from the ground up, with input from contractors to give ou the best degree in control on the market. The Silva is extremely versatile and lightweight and allows the operator to use the machine in areas of difficult access.
The Silva features the latest in electronic high frequency vibration technology. The motor is in the head itself which creates a very powerful but smooth high frequency vibration which prevents concrete splatter whilst ensuring air pockets are removed. The Motor in the head also means a very low hand arm vibration figure to meet the latest in HSE requirements and helping the operator in the machines use and control
Specs
| Electrical Characteristics | |||||||
|---|---|---|---|---|---|---|---|
| Model | MEF-38 | MEF-50 | |||||
| Head termal protection | YES | YES | |||||
| Nominal Intensity | 2,5A | 3,5A | |||||
| Working tension II | 110V / 60Hz [230V /50Hz Available] | 110V / 60Hz [230V /50Hz Available] | |||||
| Output tension III | 110V / 200Hz [230V /100Hz Available] | 110V / 200Hz [230V /100Hz Available] | |||||
| Mechanical Characteristics | |||||||
|---|---|---|---|---|---|---|---|
| Model | MEF-38 | MEF-50 | |||||
| Head diameter mm (inch) | 38 (1 ½’) | 50 (2’) | |||||
| Head length mm (inch) | 360 (14’) | 333 (13’) | |||||
| Equipment weight Kg (lbs) | 17 (37,4) | 18 (39,6) | |||||
| Approx. vibrations vpm | 13.500 | 13.500 | |||||
| Centrifugal force N | 1.500 | 2.700 | |||||
| Length of protective rubber hose m (ft) | 4 (13,1) | 4 (13,1) | |||||
| Length of power cable m (ft) | 5 (16,4) | 5 (16,4) | |||||
