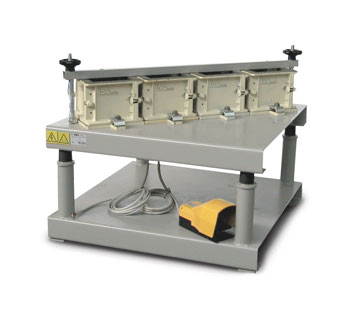

Vibrating Tables For Concrete testing
Vibrating tables for concrete testing.
Our range of vibrating tables are used to aid the compacting of a variety of materials depending on your application. The vibrating action helps materials and products nest closely and settle to reduce the product volume to a minimum. These vibrating tables can be purchased with a clamping device and a waterproof Pedal Switch.
Manufactured using high quality materials with a painted finish to ensure a long-life span and low maintenance.
These vibrating tables are robustly manufactured and carefully designed to make sure they can operate effectively but quietly. Manufactured to operate with minimum noise level. 3000 vibrations per minute.
Specifications:
Dimensions: Tabletop surface area 800 x 800mm.
Power: 240v 50Hz
Vibration/min: 3000RPM approx.
Weight: 77.50kg approx.
Standards:
British Standard BS 1881-108 (Testing concrete - Method for making test cubes from fresh concrete).
Other Standards EN12390-2,2350-4
Tariff 90248000
Model options:
55-C0160/H Vibrating Table 800 x 800mm 240V
55-C0160/H/Z Vibrating Table 800 x 800mm 110V
55-C0159/H Vibrating Table 600 x 400mm 240V
55-C0159/H/Z Vibrating Table 600 x 400mm 110V
Accessories:
Waterproof Pedal Switch 55-C0159/11which can be operated on/off via foot pedal speed control unit for vibrating tables can be added to any table to make for fine tuning on RPM of the motor if desired.
Clamping Device for 800 x 800 models: 55-C0160/10
Clamping Device for 600 x 400 models: 55-C0159/10
